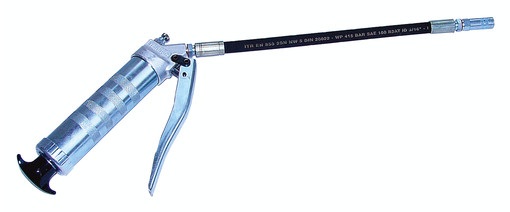

One-hand Pump Mini-Wanner
Model: MINI-WANNER
Construction type: 120 cm3 / Chain
Version: 1/8" BSP with HP Hose

Features of One-hand Pump MINI WANNER:

• Suitable for lubricants(Grease)
• Pump head made of high quality drop forging aluminium
• High precision fit of piston to pump head ensures full prevention of leaks and lubricating failures (missed shots)
• Enables even under extreme backpressure, a variable lubrication pressure with steady effort applied
• Integrated suction valve allows for controlled pressure build-up of 400 bar
• The cylinder contains a free piston that releases the pressure to the lubricant if not in use (no air bubbles, no segregation of lubricant)
• Designed to be utilised under rough conditions. Rugged design of cylinder with knurled surface - sure grip handling
• Ergonomic design, very comfortable in the hand
• Small lubricant quantities possible by applying short gentle hand strokes
• Connection output medium with check valve - prevent the medium in the pump head from feeding back
• High-speed ventilation, by half a rotation of the button on the air bleed valve
• Suitable for high-pressure lubrication in industry, building, construction and transport
• Complete disassembly possible allowing easy cleaning and maintenance
• Comprehensive spare parts service
• Warranty: 3 years


Part Number Description
ABNOX-3095900

Equipped with:

High pressure hose 400 bar, length = 210 mm, connector 1/8" BSP No. 3519400.

4-piece hydraulic connector EXCELLENT, external dia. 16 mm, length = 43 mm No. 3669000.
