Pumping highly viscous lubricants demands the right technology for this demanding task.
A pneumatic lifting device facilitates optimal suction and complete drainage of the container. An empty state detector serves to switch off the pump when the low fill level has been reached, thus preventing the aspiration of air.

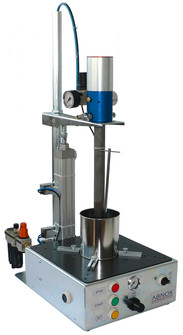

The ideal solution for your lubrication tasks! The Air-operated Grease Supply System mINI is suitable for all containers 1 kg up to 5 kg available on the market.


The Grease Supply System mINI with pressure ratio from 10:1 is ideal applicable as feeding pump for ABNOX metering valves or as filling system.

This Pumpsystem mINI is consisting an air-operated grease pump and a pump lifter including control with two-hand operating. Separate to the grease supply system the selection of the follower plate will be made according to the container size (see accessories)
Control panel with two-hand operating

Frontal view with press button to START- and STOP the supply pump, pressure regulating valve with pressure gauge for follower plate pressure and mode switch UP, HOLD and DOWN for the pneumatic lifting device

Upgrade Options
Article No.
Quantity



Set Container Centering

4633800

1 piece

Acoustic warn signal container empty

4638200

1 piece

Electric low lewer indicator container empty

4630030

1 piece

Connection piece 1/4"BSP with gauge 400 bar and ball valve for air vent

4082001

1 piece

5-Multiplier with fittings 1/4"BSP

4080501

1 piece

When ordering, please indicate internal diameter (from top and down) and the height of the container and the type of lubricant.
Caution: Attention to circumferential flanging at the container!

Character features of ABNOX Grease Supply System mINI 1-5 kg:


• Compact design
• Operator convenience
• Fast and comfortable change of container
• Supply direct from original container
• Long life time product
• Components harmonised perfectly with each other
• Usable for central grease supply
• Exchangeable follower plate
• Simple audible announcement „container empty“ with pump stops (as option)

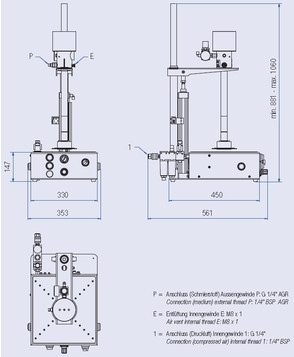

4601000 - Model:20:1 Type:With Lifting Device, Version 1-5 kg
Capacity internal dia. (mm) 80-300
Container height (mm) 300
Suction tube dia. (mm) 32
Min./Max temperture 10/40
Specification for operation medium Lubricants up to NLGI 3/5'000'000 m Pa.s
Output pressure (medium) at operating pressure 6 (bar) 115
Output pressure (medium) at operating pressure 10 (bar) 191
Delivery rate pro double stroke[cm3] 7.5
Delivery rate at pump outlet [cm3/min] 890
Inlet operating pressure (compressed air) optimum [bar] 6
Max. air consumption [l/min.] 150
Connection (Medium) External Thread P 1/4" BSP
