Metering Valve Stations
Model: Metering Valve Stations

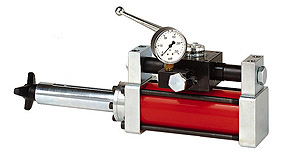

4190000 -
Model: Station/Manual-Operated
Construction type: Standard
Version: 30.0 - 500 ccm		 4190500 -
Model: Station/Air-Operated
Construction type: Standard
Version: 30.0 - 500 ccm
Character features of ABNOX Metering Valve Stations

Metering Valve Stations with Manual Adjustment are ideal suitable for large-scale metering operations, e.g. for filling Roller berings or other large Bearings or Gear boxes.

The metering tolerance is maintained to better than +/- 2% in the middle range of dosage volume. The output can be adjusted continuously by hand. With the hand operated switch on top of the valve you can start the metering process. A pressure gauge shows you the right inlet pressure.

 Metering Valve Stations with multi turn air operated actuators are ideal suitable for large-scale metering operations, e.g. for filling Roller berings or other large Bearings or Gear boxes.

The metering tolerance is maintained to better than +/- 2% in the middle range of dosage volume. The output can be adjusted continuously by hand. With the pneumatic-driven switch-over on top of the valve you can start the metering process. A pressure gauge shows you the right inlet pressure.

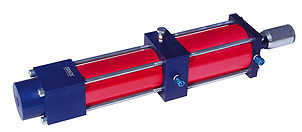

4196500 -
Model: Station
Construction type: Standard
Version: 2.0 - 26 ccm
The ABNOX Metering Valve Station can be attached to the base block easily and quick. To activate a 5/2-way-valve is required.

The Metering Valve Station is available in different dispensing ranges. The metering tolerance is maintained to better than +/- 2% in the middle range of dosage volume. The output can be adjusted continuously.

With the standard nozzles ABNOX Ltd. constructs specific customised application nozzles which can be directly screwed to metering valve.

Part Number Description
Price
ABNOX-4190000

Model: Station/Manual-Operated, Standard Design, Version 30.-500ccm
CLICK FOR TECHNICAL DATA

Call
ABNOX-4190500 Model: Station/Air Operated, Standard Design, Version 30.-500ccm
CLICK FOR TECHNICAL DATA
Call
ABNOX-4196500

Model: Station, Standard Design, Version 2.-26.0ccm
CLICK FOR TECHNICAL DATA

Call
ABNOX-4196503 Model: Station, Sensor H, Version 2..-26.0ccm
CLICK FOR TECHNICAL DATA
Call
ABNOX-4196504 Model: Station, Sensor P, Version 2.-26.0ccm
CLICK FOR TECHNICAL DATA
Call
ABNOX-4197000

Model: Station, Standard, Version 5.-54 ccmccm Handgrip CLICK FOR TECHNICAL DATA

Call
ABNOX-4197003

Model: Station, Sensor H, Version 5.-54 ccm.0ccmHandgrip CLICK FOR TECHNICAL DATA

Call
ABNOX-4197004 Model: Station, Sensor P, Version 5.-54 ccm CLICK FOR TECHNICAL DATA
Call
ABNOX-4197500 Model: Station, Standard, Version 10.-133 ccm CLICK FOR TECHNICAL DATA
Call
ABNOX-4197503 Model: Station, Sensor H, Version 10.-133 ccm CLICK FOR TECHNICAL DATA
Call
ABNOX-4197504 Model: Station, Sensor P, Version 10.-133 ccm CLICK FOR TECHNICAL DATA
Call
Spare Parts
  Article No. Quantity
Seal Kit 4190900 1 piece
