| | Wood Tech Enterprises HOME>FEEDROLLERS> Drive Hubs & Replacement Tires |
| DRIVE HUBS & REPLACEMENT TIRES FOR MOULDERS
>Reuseable Hubs

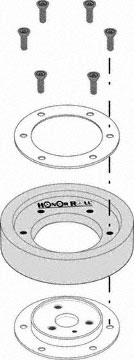

The precision machined steel moulder hubs are built to last. Hubs are flush sided for stacking. Special application hubs are available on request.
www.feedrollers.com offers this system for practically any machine on the market today Please call us for a price quote and details. To see how the Feedworks Roller System works - click here. |
| Product Number | Bore | Key | Width | Machine | Price
(Any Qty.) |
H-110S (2") | 30mm | 10mm | 2" | SCMI P64, P75, Compact 22, 23 & 23S, Sintex |
CALL |
H-110S (3/4") | 30mm | 10mm | 3/4" | SCMI P64, P75, Compact 22, 23 & 23S, Sintex |
CALL |
H-3 | 3" | 3/8" | 2" | Diehl & others |
CALL |
H-4 | 1 5/8" | 3/8" | 2" | Mattison & others |
CALL |
H-5S* | 35mm | 10mm | 2" | Weinig, SCMI (Superset 23, Logic 23, P18, P22, P170, P230) & others with set screw |
CALL |
H-6S* | 35mm | 10mm | 3/4" | Weinig & SCMI (Superset 23, Logic 23, P18, P22, P170, P230) & Wadkin Shaft |
CALL |
H-6-WG | 30mm | none | 3/4" | Weinig -three bolt hole |
CALL |
H-6-WK | 25mm | none | 3/4" | Wadkin Flange Mount |
CALL |
H-6-LEADERMAC |
35mm |
none |
3/4" |
Leadermac, Kentwood and Cantek bolt on |
CALL |
H-6-SCMI | 35mm | none | 3/4" | SCM Super Set 23 and Top Set Bolt on position |
CALL |
H-6-DHL |
30mm |
8mm |
3/4" |
Diehl |
CALL |
H-7 | 35mm | 10mm | 3/4" | Weinig & IIDA |
CALL |
H-8-WG | 30mm | none | 2" | Weinig -three bolt |
CALL |
H-8-WK | 25mm | none | 2" | Wadkin Flange Mount |
CALL |
H-8-SCMI | 30mm | | 2" | SCM Super Set 23 and Top Set Bolt on position |
CALL |
| *Keystock M8 x 10mm for SCMI Machines: 2" long - $2.00 & 3/4" long - CALL | | | |
| | >Replacement Tires
Replacement tires are available in a number of sizes, hardness. Durometers and are color coded for easy identification. Orange tire denotes 80 Durometer, Green tire denotes 85 Durometer and Red tire denotes 90 Durometer. The higher the number, the harder the tire. (Specify Durometer when ordering or call for technical assistance.) Bevels are available. |
| Hardness Chart | | Durometer | Color | | 50 | Dark Green | | 60 | Dark Blue | | 70 | Yellow | | 80 | Orange | | 85 | Kelly Green | | 90 | Red | The higher the number—the harder the tire. Softer tires grip better but wear out faster, just like high performance car tires. 50,60, and 70 Durometer tires are normally used in Power stock feeder applications. 80 and 85 Durometer tires are used on Thru-feed moulders. 90 Duro's are typically used on push feed rollers. For more info: call 1-800-TOOLING. | |   Product Number | Width | Outside Diameter | Price
(Any Qty.) |
T-110-120 (2") | 2" | 120mm (4 3/4") | CALL |
T-110-120 (3/4") | 3/4" | 120mm (4 3/4") | CALL |
T-3-206 | 2" | 206mm (8-1/8") | CALL |
T-4-160 | 2" | 160mm (6-5/16") | CALL |
T-4-170 | 2" | 170mm (6-11/16") | CALL |
T-4-184 | 2" | 184mm (7-1/4") | CALL |
T-5-140 | 2" | 140mm (5-1/2") | CALL |
T-6-140 | 3/4" | 140mm (5-1/2") | CALL |
T-7-170 | 3/4" | 170mm (6-11/16") | CALL |
T-8-140 | 2" | 140mm (5-1/2") | CALL |

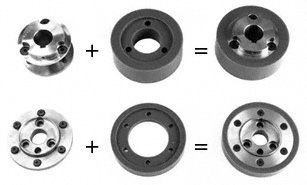

| Assemblies are flush sided for stacking. All sizes shipped from inventory. Bevels available. | |
| | |
| | Hold Down Rollers with Bearing |
 | Product Number | Diameter | Machine | Price |
HDRoller | 80mm x 20mm | Weinig, Wadkin & SCMI* | CALL |
| *Needs Reducing Bushing - $21.00 | |
