Wood Tech Presents Freud Rail & Stile Door Systems

	Wood Tech is excited to be adding this new product line. We are adding items daily, if you don't see what you are looking for, please give us a call. We can assist you by phone during this building process.
If you don't see what you are looking for please call us at 1-800-Tooling or 1-828-628-4414 be tween the hours of 8 a.m and 5:00 p.m. EST, Mon. through Fri.
RS1000 & RS2000 Rail and Stile Door Systems Freud now has a revolutionary system for making cabinet doors. This system combines the flexibility of standard insert tooling with the performance of resharpenable Micro-Grain Carbide Knives. This gives cabinet manufacturers the ability to offer over 18 different styles of cabinet doors at a fraction of the cost of fixed cutters. These cutters are packed with special features like: eased panel slot edges to prevent splintering and improve finishing, zero down time to switch from the moulding cut to the cope cut with matched reversed sets, and profiles that always match even after resharpening.	The End of Splintering
The RS1000 set contains both cutter heads, groovers and knives RS-K for cutterhead RS-R. Profile Knives can be purchased separately.
The RS2000 contains everything in the RS1000, plus nine different pairs of profile knives. Both sets come with a sample of a rail and stile and complete manual for easy setup. Additional heads can be purchased separately.

RS1000 & RS2000 Rail & Stile Door Systems Systems

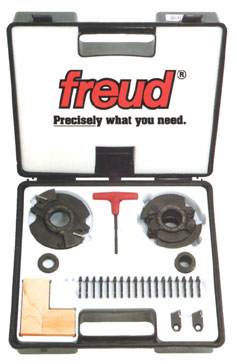

	RS2000 - Freud Deluxe Rail & Stile System Bore: 1-1/4" Cutter Head: RS-S (Overall Dia.: 4-7/16") Cutter Head: RS-R (Overall Dia.: 4-7/16") Groover Included - RS-K Knives Included: RS-L (Glass door & Back Tenon knife for RS-S) RS-A, RS-B, RS-C, RS-D, RS-E, RS-F, RS-G, RS-H, RS-I Our Price: $745 (Rub Collar: RSC-0# - Sold Separately)
	RS1000- Freud's Basic Stile & Rail System is also available, please inquire.

PROFILE KNIFE SETS
PROFILE KNIFE RS-A RAISED PANEL DOOR SET-UP Use this set-up when constructing raised panel doors. Eased over edges on inside of panel groove provide less splintering, should be done between the cutter heads to achieve the fit required. USES:Knife RS-A, Knife RS-L, Head RS-R and Head RS-S Click here for profile measurements. Click here for profile illustrating how to use.
PROFILE KNIFE RS-A GLASS PANEL DOOR SET-UP Use this set-up when a rabbeted groove is required to allow the insertion and removal a glass panel. Use small moulding to hold glass place. No shimming should be needed. USES:Knife RS-A, Knife RS-L, Head RS-R and Head RS-S Click here for profile dimensions. Click here for profile illustrating how to use.

PROFILE KNIFE RS-B RAISED PANEL DOOR SET-UP Use this set-up when constructing raised panel doors. Eased over edges on inside of panel groove provide less splintering, easier finishing and easier insertion of panels. Shimming should be done between the cutter heads to achieve the fit required. USES:Knife RS-B, Knife RS-L, Head RS-R and Head RS-S Click here for profile measurements. Click here for profile illustrating how to use.
PROFILE KNIFE RS-B GLASS PANEL DOOR SET-UP Use this set-up when a rabbeted groove is required to allow the insertion and removal a glass panel. Use small moulding to hold glass place. No shimming should be needed. USES:Knife RS-B, Knife RS-L, Head RS-R and Head RS-S Click here for profile dimensions. Click here for profile illustrating how to use.

PROFILE KNIFE RS-C RAISED PANEL DOOR SET-UP Use this set-up when constructing raised panel doors. Eased over edges on inside of panel groove provide less splintering, easier finishing and easier insertion of panels. Shimming should be done between the cutter heads to achieve the fit required. USES:Knife RS-C, Knife RS-D, Knife - RS-L, Head RS-R and Head RS-S Click here for profile measurements. Click here for profile illustrating how to use.
PROFILE KNIFE RS-C GLASS PANEL DOOR SET-UP Use this set-up when a rabbeted groove is required to allow the insertion and removal a glass panel. Use small moulding to hold glass place. No shimming should be needed. USES:Knife RS-C, Knife RS-D, Knife - RS-L, Head RS-R and Head RS-S Click here for profile dimensions. Click here for profile illustrating how to use.

PROFILE KNIFE RS-D RAISED PANEL DOOR SET-UP Use this set-up when constructing raised panel doors. Eased over edges on inside of panel groove provide less splintering, easier finishing and easier insertion of panels. Shimming should be done between the cutter heads to achieve the fit required. USES:Knife RS-D, Knife RS-C,Knife RS-L, Head RS-R and Head RS-S Click here for profile measurements. Click here for profile illustrating how to use.
PROFILE KNIFE RS-D GLASS PANEL DOOR SET-UP Use this set-up when a rabbeted groove is required to allow the insertion and removal a glass panel. Use small moulding to hold glass place. No shimming should be needed. USES:Knife RS-D, Knife RS-C,Knife RS-L, Head RS-R and Head RS-S Click here for profile dimensions. Click here for profile illustrating how to use.

PROFILE KNIFE RS-E RAISED PANEL DOOR SET-UP Use this set-up when constructing raised panel doors. Eased over edges on inside of panel groove provide less splintering, easier finishing and easier insertion of panels. Shimming should be done between the cutter heads to achieve the fit required. USES:Knife RS-E, Knife RS-F, Knife RS-L, Head RS-R and Head RS-S Click here for profile measurements. Click here for profile illustrating how to use.
PROFILE KNIFE RS-E GLASS PANEL DOOR SET-UP Use this set-up when a rabbeted groove is required to allow the insertion and removal a glass panel. Use small moulding to hold glass place. No shimming should be needed. USES:Knife RS-E, Knife RS-F, Knife - RS-L, Head RS-R and Head RS-S Click here for profile dimensions. Click here for profile illustrating how to use.

PROFILE KNIFE RS-F RAISED PANEL DOOR SET-UP Use this set-up when constructing raised panel doors. Eased over edges on inside of panel groove provide less splintering, easier finishing and easier insertion of panels. Shimming should be done between the cutter heads to achieve the fit required. USES:Knife RS-F, Knife RS-E, Knife RS-L, Head RS-R and Head RS-S Click here for profile measurements. Click here for profile illustrating how to use.
PROFILE KNIFE RS-F GLASS PANEL DOOR SET-UP Use this set-up when a rabbeted groove is required to allow the insertion and removal a glass panel. Use small moulding to hold glass place. No shimming should be needed. USES:Knife RS-F, Knife RS-E, Knife RS-L, Head RS-R and Head RS-S Click here for profile dimensions. Click here for profile illustrating how to use.

PROFILE KNIFE RS-G RAISED PANEL DOOR SET-UP Use this set-up when constructing raised panel doors. Eased over edges on inside of panel groove provide less splintering, easier finishing and easier insertion of panels. Shimming should be done between the cutter heads to achieve the fit required. USES:Knife RS-G, Knife RS-H, Knife RS-L, Head RS-R and Head RS-S Click here for profile measurements. Click here for profile illustrating how to use.
PROFILE KNIFE RS-G GLASS PANEL DOOR SET-UP Use this set-up when a rabbeted groove is required to allow the insertion and removal a glass panel. Use small moulding to hold glass place. No shimming should be needed. USES:Knife RS-G, Knife RS-H, Knife RS-L, Head RS-R and Head RS-S Click here for profile dimensions. Click here for profile illustrating how to use.

PROFILE KNIFE RS-H RAISED PANEL DOOR SET-UP Use this set-up when constructing raised panel doors. Eased over edges on inside of panel groove provide less splintering, easier finishing and easier insertion of panels. Shimming should be done between the cutter heads to achieve the fit required. USES:Knife RS-H, Knife RS-G, Knife RS-L, Head RS-R and Head RS-S Click here for profile measurements. Click here for profile illustrating how to use.
PROFILE KNIFE RS-H GLASS PANEL DOOR SET-UP Use this set-up when a rabbeted groove is required to allow the insertion and removal a glass panel. Use small moulding to hold glass place. No shimming should be needed. USES:Knife RS-H, Knife RS-G, Knife RS-L, Head RS-R and Head RS-S Click here for profile dimensions. Click here for profile illustrating how to use.

PROFILE KNIFE RS-I RAISED PANEL DOOR SET-UP Use this set-up when constructing raised panel doors. Eased over edges on inside of panel groove provide less splintering, easier finishing and easier insertion of panels. Shimming should be done between the cutter heads to achieve the fit required. USES:Knife RS-I, Knife RS-L, Head RS-R and Head RS-S Click here for profile measurements. Click here for profile illustrating how to use.
PROFILE KNIFE RS-I GLASS PANEL DOOR SET-UP Use this set-up when a rabbeted groove is required to allow the insertion and removal a glass panel. Use small moulding to hold glass place. No shimming should be needed. USES:Knife RS-I, Knife RS-L, Head RS-R and Head RS-S Click here for profile dimensions. Click here for profile illustrating how to use.
