Haimer Balancing Machines

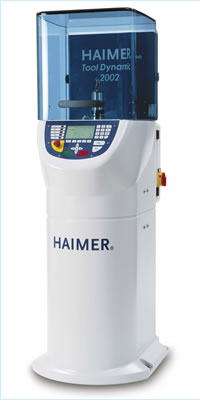

Tool Dynamic 2002 Economic
Works very precisely and with an adapter system which can be used for all kinds of tool holders. Measurement in one plane (static).

Particularly very sensible for short tool-holders, because of the couple unbalance being very low. Easy handling with inte-grated keyboard and screen.













Technical data subject to change without notice.

Technical Details
Tool Dynamic 2002 Economic Price
Dimensions bxhxt [mm] 500x1500x820
Weight [kg] 450
Power requirements [V/Hz] 230/50-60
Spindle speed [rpm] 300-1100
Measuring accuracy [gmm] < 0,5
Power usage [kW] 0.4
Compressed air [bar] 6
Max. tool length [mm] 400
Max. tool diameter [mm] 380
Max. tool weight [kg] 30
Order number Haimer-80.220.00 CALL 1-800-Tooling FOR PRICING
