Haimer Balancing Machines

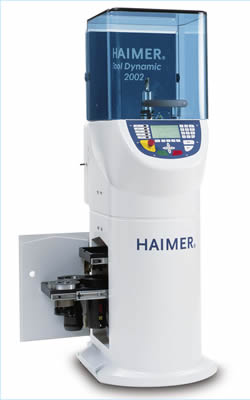

Tool Dynamic 2002 Economic Plus
For measuring in two planes (dynamic). Long tools must be balanced in two planes in order to eliminate the couple unbalance.

The handling is done by an integrated keyboard and screen, which is clearly designed. Furthermore the Economic Plus has an integrated drawer for accessories.













Technical data subject to change without notice.

Technical Details
Tool Dynamic 2002 Economic Plus Price
Dimensions bxhxt [mm] 500x1500x820
Weight [kg] 450
Power requirements [V/Hz] 230/50-60
Spindle speed [rpm] 300-1100
Measuring accuracy [gmm] < 0,5
Power usage [kW] 0.4
Compressed air [bar] 6
Max. tool length [mm] 400
Max. tool diameter [mm] 380
Max. tool weight [kg] 30
Order number Haimer-80.222.00 CALL 1-800-Tooling FOR PRICING
