Wood Tech presents Miller Dowel

MINI-X

1SXR

1X

2X

NEW WOOD
SPECIES
••• SHOW SPECIAL!— SAVE OVER 20% Buy the MiniX, the 1x and the 2x Birch Joinery Kits for $59.95. Ends 3/31/08. •••
If you have a fast connection watch the Miller Dowel Demo - 14 MB:

You will need the Windows Media Player to watch the video. Click on image to get Player. 		••• The Miller Dowel Company introduces a revolutionary wooden fastener that offers superior joinery strength, easy and quick application, and time-honored appearance. It is a ribbed, hardwood dowel with a patented stepped-shoulder design which locks components together when seated.

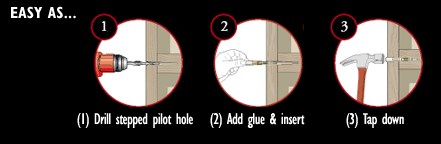

Miller Dowel joinery is a simple two-part system consisting of a multi-diameter, stepped drill bit used to bore specialized pilot holes for each correspondingly sized dowel.

This inventive relationship combines the ease of metal fastening with the benefits of solid wood joinery. Miller Dowels are inserted from the outside, aligning and holding the components flush without clamps.
They anchor in end grain, have instant set time, are non-corrosive, and are self-plugging. The ribbed design holds and disperses glue throughout the joint.

The principles that have made the mortise and tenon, dovetail and other traditional wood joints so enduring also apply to the Miller Dowel system. Joints created with Miller Dowels are more stable, flexible, and durable than those made with metal fasteners.

••• FEATURING A PATENTED-STEPPED DESIGN—the way the dowel is made:
1. The first section acts like a clamp holding the first piece securely to the second.
2. The second section gives the joint shear strength.
3. The remaining sections bond with the anchor piece to form a secure joint.

•••ABOUT OUR DOWELS
1. Miller Dowels are stepped to achieve 4 separate, parallel diameters, between each of these is a radial ledge of 45°.
2. Currently available in four different sizes, 1x, 2x, the Mini-X and the 1XSR*.
3. Currently available in four hardwood species: Birch, Black Walnut, Cherry, Red Oak
4. Turned to a precise tolerance of +/-.008"
5. Kiln dried to a moisture content of 7%-9%.

••• ABOUT THE MILLER TRU-FIT STEPPED DRILL BITS
1. Stepped to match a corresponding Miller Dowel
2. Made from M2, industrial-quality high speed steel for longer cutting life
3. Designed with an aggressive helix and polished flutes for efficient chip removal
4. Three positive locking flats ground on the shank prevent spin-out
5. Split point prevents walking along the grain

Click on image to get the Free Windows Media Player
How-To-Instructions
DOWEL Advantages
DOWEL Applications
DOWEL FAQS


Make a Children's Table & Chair (984k pdf)
Side 1 Side 2
courtesy of Miller Dowel


Now Available:

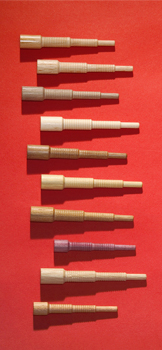

NEW WOOD SPECIES DOWELS!

For Interior Projects the dowels are available in Red Oak, Black Walnut, Birch and Cherry.

For Exterior or Interior Projects choose dowels in Ipe, Purple Heart, Teak, Mahogany, White Oak and Black Locust. Not all wood species are available in all sizes, please call for availability.

Introducing the NEW MINI-X!

Optimized for joining boards up to 1/2 ” thick. The Mini-X version is ideal for drawer boxes. Mini-X Miller Dowels have been designed specifically for use in commercial cabinet and furniture production. COMPATIBLE WITH CNC MACHINERY - Dual Bore Drill Bits are carbide tipped in through-bore and edge-bore versions. Shank diameter 10mm (25/64)". Unique design features a capping effect to reduce or eliminate clamp time.

For more info: Click here.
KITS
The NEW MINI-X!
Part No# Description - Click here for dowel dimensions Wood Tech Price
MD-MiniXJoineryKit-Birch Miller Dowell's Mini X Joinery Kit includes 100 Birch Dowels and the TruFit Drill Bit CALL
MD-MiniXJoineryKit-Cherry Miller Dowell's Mini X Joinery Kit includes 100 Cherry Dowels and the TruFit Drill Bit CALL
MD-MiniXJoineryKit-Oak Miller Dowell's Mini X Joinery Kit includes 100 Red Oak Dowels and the TruFit Drill Bit CALL
MD-MiniXJoineryKit-Walnut Miller Dowell's Mini X Joinery Kit includes 100 Walnut Dowels and the TruFit Drill Bit CALL
MD-MiniXDrillBit Miller Dowell's Mini X TruFit Drill Bit CALL

Need More Mini-X Dowels?
Part No# Description Wood Tech Price
MD-100MiniXOak 100 each, Mini Red Oak Miller Dowels CALL
MD-100MiniXWalnut 100 each, Mini Walnut Miller Dowels CALL
MD-100MiniXCherry 100 each, Mini CherryMiller Dowels CALL
MD-100MiniBirch 100 each, Mini Birch Miller Dowels CALL



NEW! 1XSR Miller Dowel

Optimized for joining boards up to 5/8" to 3/4 ” thick - COMPATIBLE WITH CNC MACHINERY - Dual Bore Drill Bits are carbide tipped in through-bore and edge-bore versions. Shank diameter 10mm (25/64)". Unique design features a capping effect to reduce or eliminate clamp time.

The 1XSR is suitable for 16 to 19mm (5/8"-3/4") stock case construction. The new 1XSR enables shops with CNC or traditional line and edge boring equipment to utilize the advantages of automatic alignment and clampless assembly that the all-wood Miller Dowel Joinery System offers.

Part No# Description Wood Tech Price
MD-OneXSR For Use in Commercial Cabinet and Furniture Construction CALL

  KITS
  1x MillerrDowel - Optimized for joining top boards up to 1” thick

Part No# Description - Click here for dowel dimensions. Wood Tech Price
MD-OneXJoineryKit-Birch Miller Dowell's One X Joinery Kit includes 50 Birch Dowels and the TruFit Drill Bit CALL
MD-OneXJoineryKit-Cherry Miller Dowell's One X Joinery Kit includes 40 Cherry Dowels and the TruFit Drill Bit CALL
MD-OneXJoineryKit-Oak Miller Dowell's One X Joinery Kit includes 40 Red Oak Dowels and the TruFit Drill Bit CALL
MD-OneXJoineryKit-Walnut Miller Dowell's One X Joinery Kit includes 40 Walnut Dowels and the TruFit Drill Bit CALL
MD-OneXDrillBit Miller Dowell's One X TruFit Drill Bit CALL

Need More One X Dowels?
Part No# Description Wood Tech Price
1x Red Oak Dowels
MD-40OOneXOak 40 each, 1X Red Oak Miller Dowels CALL
MD-100OneXOak 100 each, 1X Red Oak Miller Dowels CALL
MD-500OneXOak 500 each, 1X Red Oak Miller Dowels CALL
1x Walnut Dowels
MD-40OneXWalnut 40 each, 1X Walnut Miller Dowels CALL
MD-100OneXWalnut 100 each, 1X Walnut Miller Dowels CALL
MD-500OneXWalnut 500 each, 1X Walnut Miller Dowels CALL
1x Cherry Dowels
MD-40 OneXCherry 40 each, 1X Cherry Miller Dowels CALL
MD-100OneXCherry 100 each, 1X CherryMiller Dowels CALL
MD-500OneiXCherry 500 each, 1X Cherry Miller Dowels CALL
1x Birch Dowels
MD-40OneXBirch 40 each, 1X Birch Miller Dowels CALL
MD-100OneXBirch 100 each, 1X Birch Miller Dowels CALL
MD-500OneXBirch 500 each, 1X Birch Miller Dowels CALL

  KITS
  2x Miller Dowel – Optimized for joining top boards up to 1.5” thick

Part No# Description - Click here for dowel dimensions Wood Tech Price
MD-TwoXJoineryKit-Birch Miller Dowell's Two X Joinery Kit includes 50 Birch Dowels and the TruFit Drill CALL
MD-TwoXJoineryKit-Cherry Miller Dowell's Two X Joinery Kit includes 40 Cherry Dowels and the TruFit Drill CALL
MD-TwoXJoineryKit-Oak Miller Dowell's Two X Joinery Kit includes 40 Red Oak Dowels and the TruFit Drill CALL
MD-TwoXJoineryKit-Walnut Miller Dowell's Two X Joinery Kit includes 40 Walnut Dowels and the TruFit Drill CALL
MD-TwoXDrillBit Miller Dowell's Two X TruFit Drill Bit CALL

Need More Two X Dowels?
Part No# Description Wood Tech Price
2x Red Oak Dowels
MD-40OTwoXOak 40 each, 2X Red Oak Miller Dowels CALL
MD-100TwoXOak 100 each, 2X Red Oak Miller Dowels CALL
MD-500TwoXOak 500 each, 2X Red Oak Miller Dowels CALL
2x Walnut Dowels
MD-40TwoXWalnut 40 each, 2X Walnut Miller Dowels CALL
MD-100TwoXWalnut 100 each, 2X Walnut Miller Dowels CALL
MD-500TwoXWalnut 500 each, 2X Walnut Miller Dowels CALL
2x Cherry Dowels
MD-40 TwoXCherry 40 each, 2X Cherry Miller Dowels CALL
MD-100TwoXCherry 100 each, 2X CherryMiller Dowels CALL
MD-500TwoXCherry 500 each, 2X Cherry Miller Dowels CALL
2x Birch Dowels
MD-40TwoXBirch 40 each, 2X Birch Miller Dowels CALL
MD-100TwoXBirch 100 each, 2X Birch Miller Dowels CALL
MD-500TwoXBirch 500 each, 2X Birch Miller Dowels CALL
