INTRODUCING NEW PRODUCTS FOR 2005 FROM CMT!

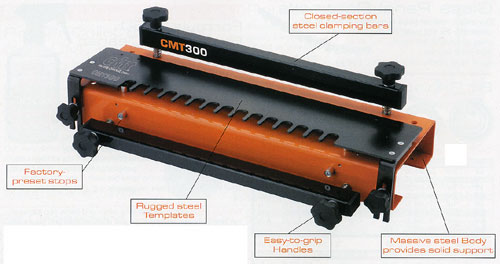

CMT's 12" UNIVERSAL DOVETAIL JIG

DOVETAIL JOINTS GIVE A LASTING SYMBOL OF CRAFTSMANSHIP TO YOUR WORK! (Click on image for larger view.)

However, many woodworkers avoid the joint due to its apparent complexity. CMT's new 12" Dovetail Jig is the fast, easy solution. With precise templates, permanent stops and easy adjustments, we've taken the "tinkering" out of dovetail joinery. You simply clamp your work pieces in with the edges against the factory-set stops, set your bit depth, and you're ready to rout. We haven't cut any corners on quality either.

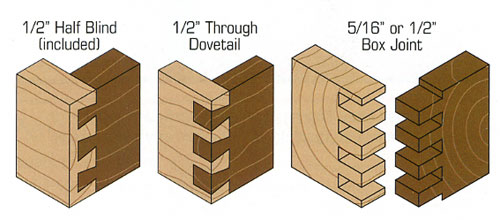

This jig features steel construction throughout- body, templates, stops and clamping bars - so it will still produce perfect joints long after jigs with lightweight plastic parts have gone to the scrap heap. The jig accepts stock from 7/16" to 1" thick, and is capable of producing a variety of joints with the available templates. The standard jig includes a template for 1/2" half blind joints, a template guide (some routers require the adapter, click here), a CMT carbide-tipped dovetail bit and complete instructions. Optional templates are also available for through-dovetail and box joints.

Click here to see how it works: Will the template guide fit my router?
Item # Description Wood Tech Price
CMT-300

Universal Dovetail Jig

CALL
Description of what is included with the CMT Dovetail jig

Item # Description of what is included with jig Wood Tech Price
CMT300-T128 1/2" Blind Template CALL
CMT899.005.00 Precision Template Guide 015,8x4mm (.625" x .15") CALL
CMT818.128.11 Dovetail Bit for 1/2" Blind Joint CALL
Additional Templates, Bits and Accessories
**Half Blind Template
Item # Description Wood Tech Price
CMT300-T064 1/4" Half Blind Template to be used with dovetail bits listed below. Length: 300mm or 11-3/4", Dovetail size: 6,3mm or 1/4", thickness: 8 - 12 mm or 5/16" to 1/2", Color: Green CALL
CMT899.003.00 Precision Template Guide 07,8x4mm (or .314" x .15") CALL

CMT718.060.11 Dovetail Bit - HW 06x8mm (.236" x .314"), shank: 06mm or .236") CALL
CMT818.064.11 Dovetail Bit - HW 06,35x8,3mm (1/4" x .326"), shank: 06,35mm(or 1/4") CALL
**Through Dovetail Template
Item # Description Wood Tech Price
CMT300-T129 1/2" Through Dovetail Template to be used with Straight and Dovetail router bits listed below. Length: 300mm or 11-3/4", Dovetail size: 12,7mm or 1/2", thickness: 8 - 20mm or 5/16" to 25/32", Color: Brown CALL
CMT899.004.00 Precision Template Guide 011,1x4mm (or .44" x .15") CALL

CMT818.129.11 Dovetail Bit HW: 012,7x20mm (1/2" x 25/32"), shank: 6,35mm (or 1/4") CALL
CMT918.129.11 Dovetail Bit HW: 012,7x20mm (1/2" x 25/32"), shank: 8 mm (or 5/16") CALL

CMT811.081.11 Straight Bit HW: 08 x 25mm (5/16" x .98"), shank length: 6,35mm (or 1/4") CALL
CMT912.080.11 Straight Bit HW: 08 x 30mm (5/16" x 1.18"), shank 8mm (or 5/16") CALL
Item # Description Wood Tech Price
CMT300-T190 3/4" Through-Dovetail Template to be used with Straight and Dovetail router bits listed below. Length: 300mm or 11-3/4", Dovetail size: 19mm or 3/4", thickness: 15 - 25mm or .59 " to 98", Color: Violet CALL
CMT899.006.00 Precision Template Guide 022x4mm (or .86" x .15") CALL

CMT812.127.11

Straight Bit HW: 012,7x30mm (1/2" x 1.18"), shank: 6,35mm (or 1/4")

CALL
CMT811.627.11 Straight Bit HW: 012,7x25mm (1/2" x .98 "), shank: 12,7 mm (or 1/2") CALL

CMT718.190.11 Dovetail Bit HW: 19 x 22mm (3/4" x .866"), shank length: 6mm (or .23 ") CALL
CMT818.190.11 Dovetail Bit HW: 19 x 22mm (3/4" x .866"), shank length: 6,35mm (or 1/4") CALL
CMT918.190.11 Dovetail Bit HW: 19 x 22mm (3/4" x .866"), shank length: 8mm (or 5/16") CALL
CMT918.690.11 Dovetail Bit HW: 19 x 22mm (3/4" x .866"), shank length: 12mm (or .47") CALL
CMT818.690.11 Dovetail Bit HW: 19 x 22mm (3/4" x .866"), shank length: 12,7mm (or 1/2") CALL
**5/16" Box Joint Template
Item # Description Wood Tech Price
CMT300-T080 5/16" Box Joint Template to be used with straight router bits listed below. Length: 300mm (or 11-3/4"), Dovetail size: 8 mm (or 5/16"), thickness: 8 - 20mm (or 5/16" to 25/32"), Color: Blue CALL
CMT899.004.00 Template Guide for 5/16" Box Joint CALL

CMT811.081.11 Straight Bit HW: 08 x 25mm (5/16" x .98"), shank length: 6,35mm (or 1/4") CALL
CMT912.080.11 Straight Bit HW: 08 x 30mm (5/16" x 1.18"), shank 8mm (or 5/16") CALL
**1/2" Box Joint Template
Item # Description Wood Tech Price
CMT300-T127 1/2" Box Joint Template for use with straight router bits listed below. Length: 300mm or 11-3/4", Dovetail size: 12,7 mm or 1/2 ", thickness: 8 - 20mm or 5/16" to 25/32", Color: Red CALL
CMT899.005.00 Precision Template Guide 015,8x4mm (.625" x .15") CALL
CMT812.127.11 Straight Bit HW 012,7x30mm (or 1/2" x 1.18"), shank length: 06,35mm (or 1/4") CALL
CMT812.627.11 Straight Bit HW 012,7x25mm (or 1/2" x .98"), shank length: 12,7mm (or 1/2") CALL
CMT300-SB1
CMT300-SB2
Universal Router Base Adapter $CALL
